Presentation

Context

This package was born in the framework of the research project MobiDiv (https://anr.fr/ProjetIA-20-PCPA-0006), which aims to find solutions for pesticide-free agriculture. One of the targets of this project is to model coupled crops between wheats, modelled by CN-Wheat (https://www.quantitative-plant.org/model/CN-Wheat), and alfalfas, thanks to l-egume model (https://github.com/glouarn/l-egume). Thus, LightVegeManager was created to manage the lighting in a vegetal simulation, in formats understandable by the tools proposed on the OpenAlea platform (https://github.com/openalea).

Intentions

We want to simplify the light management when several models, plant and lighting, are involved. The tool manages many input and output formats, in order to match a wide variety of situations.

How

_images/how.png

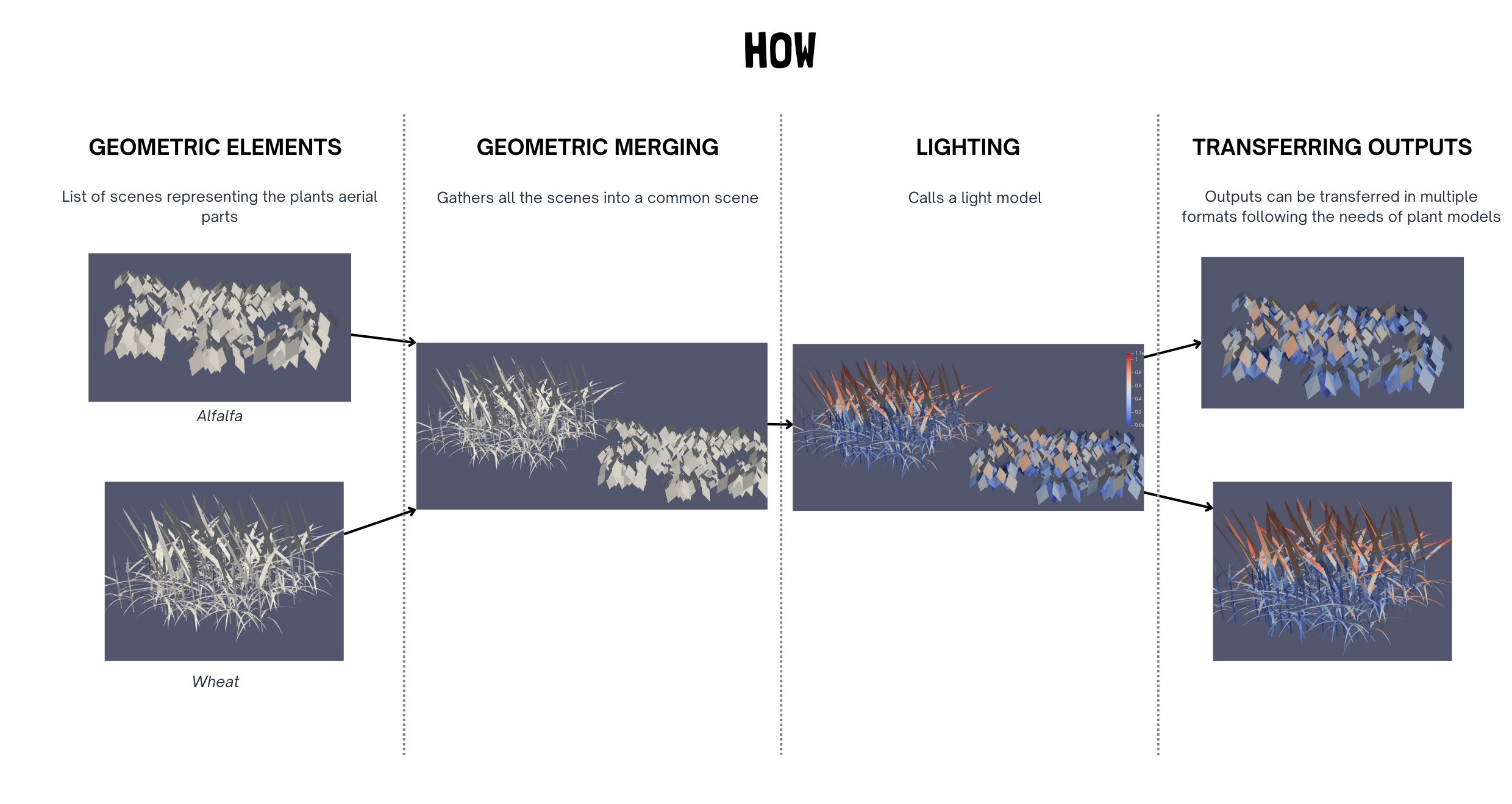

General Functionning

It reads the following input formats:

  • PlantGL scene

  • MTG table

  • VGX file

  • Caribu scene, dict storing a triangulation

  • Dict storing a grid of voxels with leaf area and leaf angle distribution

More details about the input formats here Scenes format.

And it can return the outputs in the following formats:

  • Pandas Dataframe, in multiple scales (triangles, voxels, elements) depending on the light model.

  • updates a MTG table

  • returns two tables compatible with l-egume

Lighting

At the moment, LightVegeManager can handle three lighting models, CARIBU (https://github.com/openalea-incubator/caribu), PyRATP (https://github.com/openalea-incubator/PyRATP), and RiRi modified in l-egume (https://github.com/glouarn/riri5). Those models are ajusted for virtual plant canopies with considerations, like infinitisation of the scene, which are preferred for simulating large crop fields.

They offers two different approach for light modelling:

Surfacic approach (CARIBU)

_images/triangles.PNG

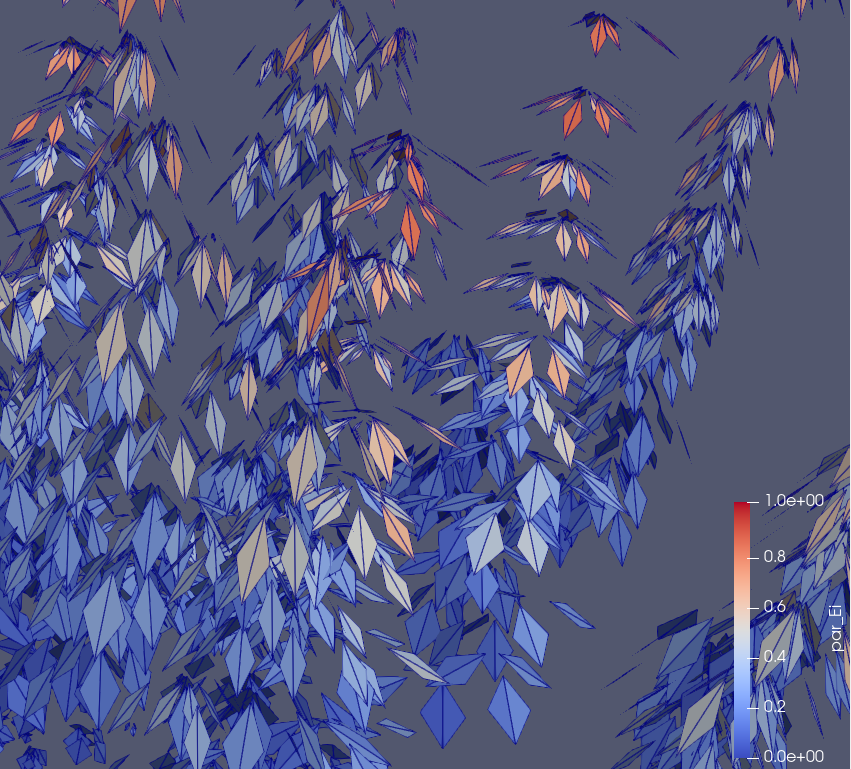

Example of a triangulation

The radiations are computed on a set of triangles. This approach offers a high precision of lighting on the different organs, but has a high cost in time computation.

Volumic approach (PyRATP, RiRi)

_images/voxels.PNG

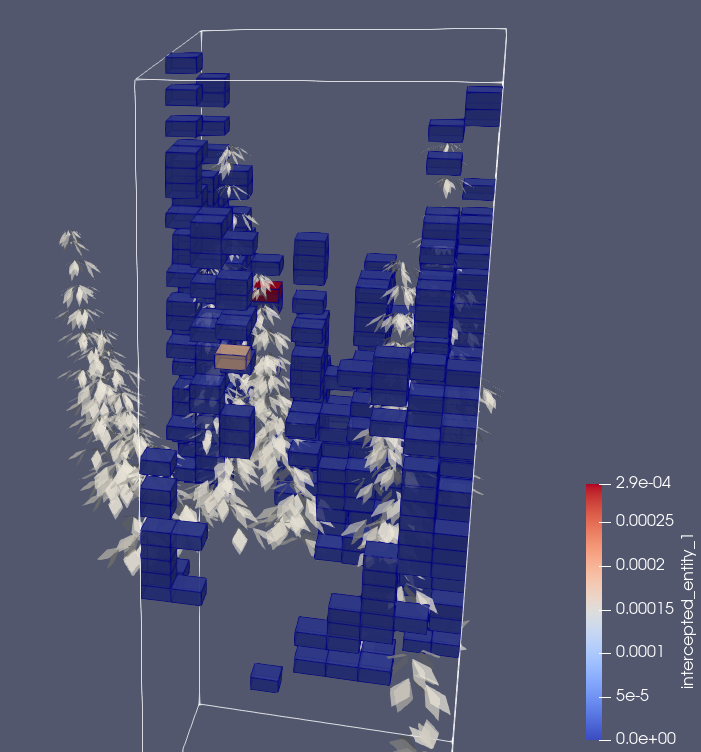

Example of a grid of voxels

The geometric scene is represented by a set of voxels, which contains a leaf area and a leaf angle informations. Then, the models solves turbid medium equations from the rays inside the grid. This approach has a higher approximation of geometry, but is well adapted for dense canopy. The computation cost is highly reduced regarding the surfacic approach but the geometric scene must matches the turbid medium representation and hypothesis.
