3. Geometric inputs
3.1. Content
input formats
Dict of triangles
PlantGL scene
VGX file
Voxels grid
MTG object from adelwheat
RATP inputs
RiRi5 inputs
organization levels: species and organs
stems management

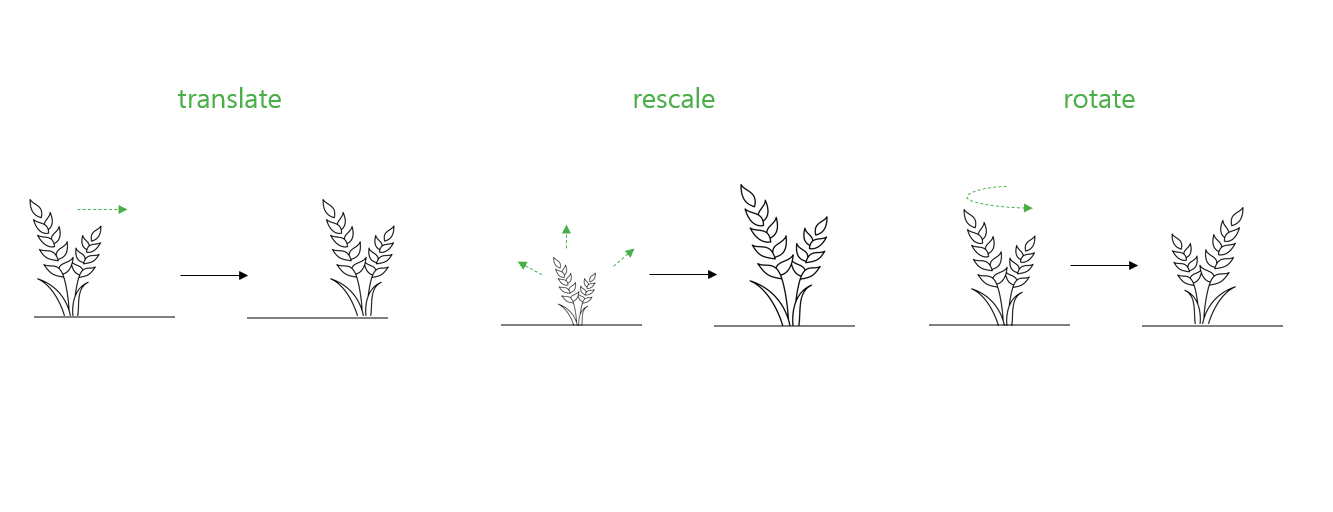

geometric transformations
3.2. Introduction
The main purpose of this tool was to merge several geometric scenes in various formats and apply a radiative modelling on it. Here, we will precise the different possiblities for manipulating geometry.
[1]:
from lightvegemanager.LVM import LightVegeManager
from pgljupyter import SceneWidget
[2]:
# Environment parameters for this notebook
longitude = 2.
latitude = 46.
timezone = 1
coordinates = [latitude, longitude, timezone]
infinite = False
reflected = False
direct = False
diffuse = True
sky = "turtle46"
environment = {
"coordinates": coordinates ,
"infinite": infinite,
"reflected": reflected,
"direct": direct,
"diffuse": diffuse,
"sky": sky
}
3.3. Inputs Formats
In this section, we won’t present single triangle and list of triangles as input geometry, as they were present in the tool_basics.ipynb notebook. Also, these two formats can be direct inputs of the geometry argument of the build method, unlike the following formats which needs to be included in a list, such as:
geometry = { "scenes": [scene1, scene2, ...] }
3.3.1. dict of triangles
A mesh of triangles can be represented as a dict, where each key is an organ ID and its value, a list of triangles belonging to the organ. A triangle is a list of a 3 vertices represented by (x,y,z)points.
In this example, we will generate random 3D triangles for 3 differents organs.
[12]:
from lightvegemanager.trianglesmesh import random_triangle_generator
spheresize = (10., 2.)
organized_triangles = {
111: [random_triangle_generator(spheresize=spheresize, worldsize=(0,20)) for i in range(20)],
222: [random_triangle_generator(spheresize=spheresize, worldsize=(20,50)) for i in range(30)],
333: [random_triangle_generator(spheresize=spheresize, worldsize=(50,100)) for i in range(10)],
}
Input geometry looks like:
[4]:
geometry = {
"scenes": [organized_triangles]
}
Then, we compute lighting and run a visualization of the scene.
Note: elements_outputs method will return a Dataframe where results are integrated on each organ.
[5]:
lighting = LightVegeManager(lightmodel="caribu", environment=environment)
lighting.build(geometry=geometry)
# compute the lighting
energy = 500.
hour = 15
day = 264
lighting.run(energy=energy, hour=hour, day=day)
print(lighting.elements_outputs)
SceneWidget(lighting.to_plantGL(lighting=True),
position=(-50.0, -50.0, 0.0),
size_display=(600, 400),
plane=True,
size_world = 100,
axes_helper=True)
Day Hour Organ VegetationType Area par Eabs par Ei
0 264 15 111 0 812.660080 254.783023 299.744733
1 264 15 222 0 906.791550 326.191765 383.755017
2 264 15 333 0 456.917637 368.655503 433.712356
[5]:
3.3.2. PlantGL scene
A plantGL Scene is a list of plantGL Shape which can be considered as organ. The ID of the plantGL Shape are stored as organs ID.
[7]:
import openalea.plantgl.all as pgl
pgl_scene = pgl.Scene([pgl.Shape(pgl.Box(), pgl.Material(), 888),
pgl.Shape(pgl.Translated((0,0,1), pgl.Cylinder()), pgl.Material(), 999)])
[8]:
geometry = {
"scenes": [pgl_scene]
}
lighting = LightVegeManager(lightmodel="caribu", environment=environment)
lighting.build(geometry=geometry)
lighting.run(energy=energy, hour=hour, day=day)
print(lighting.elements_outputs)
SceneWidget(lighting.to_plantGL(lighting=True),
position=(0.0, 0.0, 0.0),
size_display=(600, 400),
plane=True,
size_world = 5,
axes_helper=True)
Day Hour Organ VegetationType Area par Eabs par Ei
0 264 15 888 0 6.000000 159.643042 187.815343
1 264 15 999 0 4.475681 185.076017 217.736490
[8]:
3.3.3. VGX file
The tool can read a VGX file as an input entry. It extracts triangles which are considered as leaves, following its colors, if Red != 42 . All triangles are stored in the same organ, where its ID is set to 0.
[5]:
import os
vgx_path = os.path.join(os.path.dirname(os.path.abspath("")), "data", "NICatObs1P2.vgx")
vgx_path
[5]:
'C:\\Users\\mwoussen\\cdd\\codes\\dev\\lightvegemanager\\data\\NICatObs1P2.vgx'
[7]:
geometry = {
"scenes": [vgx_path]
}
# compute the lighting
energy = 500.
hour = 15
day = 264
lighting = LightVegeManager(lightmodel="caribu", environment=environment)
lighting.build(geometry=geometry)
lighting.run(energy=energy, hour=hour, day=day)
print(lighting.elements_outputs)
SceneWidget(lighting.to_plantGL(lighting=True),
position=(0.0, 0.0, 0.0),
size_display=(600, 400),
plane=True,
size_world = 100,
axes_helper=True)
Day Hour Organ VegetationType Area par Eabs par Ei
0 264 15 0 0 6062.836763 193.704509 227.887658
[7]:
3.3.4. Grid of voxels
A voxel grid is represented as a dict of two entries: - "LA" corresponding to leaf area, is a table (numpy.array) of dimension $:nbsphinx-math:text{number of species} \times `:nbsphinx-math:text{number of z layers}` \times `:nbsphinx-math:text{number of x layers}` \times `:nbsphinx-math:text{number of y layers}` $ - "distrib" corresponding to leaf angle distribution, is a list of list, where is entered a leaf angle distribution
for each specy
Grid dimensions and voxel size are set in the input parameters of RATP.
[7]:
import numpy
l_scene = {"LA": numpy.ones([2, 3, 4, 4]), "distrib": [[0.5, 0.5], [0.3, 0.7]]}
[16]:
geometry = {
"scenes": [vgx_path]
}
ratp_parameters = {
"voxel size" : [20.] * 3
}
lighting = LightVegeManager(lightmodel="ratp", environment=environment, lightmodel_parameters=ratp_parameters)
lighting.build(geometry=geometry)
lighting.run(energy=energy, hour=hour, day=day)
print(lighting.elements_outputs)
SceneWidget(lighting.to_plantGL(lighting=True, printtriangles=False, printvoxels=True),
position=(0.0, 0.0, 0.0),
size_display=(600, 400),
plane=True,
size_world = 100,
axes_helper=True)
Day Hour Organ VegetationType Area PARa Intercepted \
0 264.0 15.0 0 1 6062.836763 307.604456 215.922903
Transmitted SunlitPAR SunlitArea ShadedPAR ShadedArea
0 215.922903 307.604461 252.377915 307.604461 126.601372
[16]:
3.3.5. MTG object from adelwheat
Finally, you can also give a MTG object with a "scene" property. The package adelwheat offers such objects.
[8]:
from alinea.adel.adel_dynamic import AdelDyn
from alinea.adel.echap_leaf import echap_leaves
INPUTS_DIRPATH = os.path.join(os.path.dirname(os.path.abspath("")), "data")
adel_wheat = AdelDyn(seed=1, scene_unit="m", leaves=echap_leaves(xy_model="Soissons_byleafclass"))
g = adel_wheat.load(dir=INPUTS_DIRPATH)
[18]:
geometry = {
"scenes": [g]
}
lighting = LightVegeManager(lightmodel="caribu", environment=environment)
lighting.build(geometry=geometry)
lighting.run(energy=energy, hour=hour, day=day)
print(lighting.elements_outputs)
SceneWidget(lighting.to_plantGL(lighting=True),
position=(0.0, 0.0, 0.0),
size_display=(600, 400),
plane=True,
size_world = 0.1,
axes_helper=True)
Day Hour Organ VegetationType Area par Eabs par Ei
0 264 15 19 0 0.000228 159.208612 187.304249
1 264 15 34 0 0.000013 80.953500 95.239412
2 264 15 813 0 0.000194 385.317031 453.314154
3 264 15 814 0 0.000240 367.646906 432.525772
4 264 15 51 0 0.000284 347.458387 408.774573
[18]:
3.3.6. RATP inputs
All the above scenes can be geometric inputs if the lightmodel argument is set to "ratp".
[21]:
geometry = {
"scenes": [g]
}
lighting = LightVegeManager(lightmodel="ratp", environment=environment)
lighting.build(geometry=geometry)
lighting.run(energy=energy, hour=hour, day=day)
print(lighting.elements_outputs)
SceneWidget(lighting.to_plantGL(lighting=True, printvoxels=True),
position=(0.0, 0.0, 0.0),
size_display=(600, 400),
plane=True,
size_world = 0.1,
axes_helper=True)
Day Hour Organ VegetationType Area PARa Intercepted \
0 264.0 15.0 19 1 0.000228 435.713379 0.000693
1 264.0 15.0 34 1 0.000013 435.713379 0.000693
2 264.0 15.0 813 1 0.000194 435.713379 0.000693
3 264.0 15.0 814 1 0.000240 441.368498 0.000288
4 264.0 15.0 51 1 0.000284 435.713379 0.000693
Transmitted SunlitPAR SunlitArea ShadedPAR ShadedArea
0 0.000693 435.713379 0.000776 435.713379 0.000019
1 0.000693 435.713379 0.000776 435.713379 0.000019
2 0.000693 435.713379 0.000776 435.713379 0.000019
3 0.000288 441.368498 0.000322 441.368498 0.000007
4 0.000693 435.713379 0.000776 435.713379 0.000019
[21]:
3.3.7. RiRi5 inputs
RiRi5 can have the same inputs as RATP.
A scene grid of voxels must have exactly 9 angle classes for its leaf angle distribution, and at least one empty layer above the canopy.
Triangles mesh inputs are processed through the RATP pipeline, then is converted to RiRi5.
[9]:
import numpy
l_scene = {"LA": numpy.ones([2, 3, 4, 4]), "distrib": [[0.1, 0.2, 0.1, 0.1, 0.05, 0.05, 0.1, 0.2, 0.1],
[0.1, 0.1, 0.1, 0.1, 0.05, 0.1, 0.2, 0.2, 0.05]]}
for i in range(4):
for j in range(4):
l_scene["LA"][0][0][i][j] = 0.
l_scene["LA"][1][0][i][j] = 0.
[10]:
geometry = {
"scenes": [l_scene]
}
lighting = LightVegeManager(lightmodel="riri5", environment=environment)
lighting.build(geometry=geometry)
lighting.run(energy=energy, hour=hour, day=day)
[21]:
print(lighting.riri5_intercepted_light)
[[[[ 0. 0. 0. 0. ]
[ 0. 0. 0. 0. ]
[ 0. 0. 0. 0. ]
[ 0. 0. 0. 0. ]]
[[208.05400092 208.05400092 208.05400092 208.05400092]
[208.05400092 208.05400092 208.05400092 208.05400092]
[208.05400092 208.05400092 208.05400092 208.05400092]
[208.05400092 208.05400092 208.05400092 208.05400092]]
[[ 33.75896074 33.75896074 33.75896074 33.75896074]
[ 33.75896074 33.75896074 33.75896074 33.75896074]
[ 33.75896074 33.75896074 33.75896074 33.75896074]
[ 33.75896074 33.75896074 33.75896074 33.75896074]]]
[[[ 0. 0. 0. 0. ]
[ 0. 0. 0. 0. ]
[ 0. 0. 0. 0. ]
[ 0. 0. 0. 0. ]]
[[207.34450322 207.34450322 207.34450322 207.34450322]
[207.34450322 207.34450322 207.34450322 207.34450322]
[207.34450322 207.34450322 207.34450322 207.34450322]
[207.34450322 207.34450322 207.34450322 207.34450322]]
[[ 33.2079505 33.2079505 33.2079505 33.2079505 ]
[ 33.2079505 33.2079505 33.2079505 33.2079505 ]
[ 33.2079505 33.2079505 33.2079505 33.2079505 ]
[ 33.2079505 33.2079505 33.2079505 33.2079505 ]]]]
[22]:
print(lighting.riri5_transmitted_light)
[[[500. 500. 500. 500. ]
[500. 500. 500. 500. ]
[500. 500. 500. 500. ]
[500. 500. 500. 500. ]]
[[ 84.60149586 84.60149586 84.60149586 84.60149586]
[ 84.60149586 84.60149586 84.60149586 84.60149586]
[ 84.60149586 84.60149586 84.60149586 84.60149586]
[ 84.60149586 84.60149586 84.60149586 84.60149586]]
[[ 17.63458462 17.63458462 17.63458462 17.63458462]
[ 17.63458462 17.63458462 17.63458462 17.63458462]
[ 17.63458462 17.63458462 17.63458462 17.63458462]
[ 17.63458462 17.63458462 17.63458462 17.63458462]]]
[12]:
geometry = {
"scenes": [organized_triangles]
}
lighting.build(geometry=geometry)
lighting.run(energy=energy, hour=hour, day=day)
[13]:
print(lighting.riri5_intercepted_light)
[[[[0. 0. 0. ... 0. 0. 0.]
[0. 0. 0. ... 0. 0. 0.]
[0. 0. 0. ... 0. 0. 0.]
...
[0. 0. 0. ... 0. 0. 0.]
[0. 0. 0. ... 0. 0. 0.]
[0. 0. 0. ... 0. 0. 0.]]
[[0. 0. 0. ... 0. 0. 0.]
[0. 0. 0. ... 0. 0. 0.]
[0. 0. 0. ... 0. 0. 0.]
...
[0. 0. 0. ... 0. 0. 0.]
[0. 0. 0. ... 0. 0. 0.]
[0. 0. 0. ... 0. 0. 0.]]
[[0. 0. 0. ... 0. 0. 0.]
[0. 0. 0. ... 0. 0. 0.]
[0. 0. 0. ... 0. 0. 0.]
...
[0. 0. 0. ... 0. 0. 0.]
[0. 0. 0. ... 0. 0. 0.]
[0. 0. 0. ... 0. 0. 0.]]
...
[[0. 0. 0. ... 0. 0. 0.]
[0. 0. 0. ... 0. 0. 0.]
[0. 0. 0. ... 0. 0. 0.]
...
[0. 0. 0. ... 0. 0. 0.]
[0. 0. 0. ... 0. 0. 0.]
[0. 0. 0. ... 0. 0. 0.]]
[[0. 0. 0. ... 0. 0. 0.]
[0. 0. 0. ... 0. 0. 0.]
[0. 0. 0. ... 0. 0. 0.]
...
[0. 0. 0. ... 0. 0. 0.]
[0. 0. 0. ... 0. 0. 0.]
[0. 0. 0. ... 0. 0. 0.]]
[[0. 0. 0. ... 0. 0. 0.]
[0. 0. 0. ... 0. 0. 0.]
[0. 0. 0. ... 0. 0. 0.]
...
[0. 0. 0. ... 0. 0. 0.]
[0. 0. 0. ... 0. 0. 0.]
[0. 0. 0. ... 0. 0. 0.]]]]
[14]:
print(lighting.riri5_transmitted_light)
[[[500. 500. 500. ... 500. 500. 500.]
[500. 500. 500. ... 500. 500. 500.]
[500. 500. 500. ... 500. 500. 500.]
...
[500. 500. 500. ... 500. 500. 500.]
[500. 500. 500. ... 500. 500. 500.]
[500. 500. 500. ... 500. 500. 500.]]
[[500. 500. 500. ... 500. 500. 500.]
[500. 500. 500. ... 500. 500. 500.]
[500. 500. 500. ... 500. 500. 500.]
...
[500. 500. 500. ... 500. 500. 500.]
[500. 500. 500. ... 500. 500. 500.]
[500. 500. 500. ... 500. 500. 500.]]
[[500. 500. 500. ... 500. 500. 500.]
[500. 500. 500. ... 500. 500. 500.]
[500. 500. 500. ... 500. 500. 500.]
...
[500. 500. 500. ... 500. 500. 500.]
[500. 500. 500. ... 500. 500. 500.]
[500. 500. 500. ... 500. 500. 500.]]
...
[[500. 500. 500. ... 500. 500. 500.]
[500. 500. 500. ... 500. 500. 500.]
[500. 500. 500. ... 500. 500. 500.]
...
[500. 500. 500. ... 500. 500. 500.]
[500. 500. 500. ... 500. 500. 500.]
[500. 500. 500. ... 500. 500. 500.]]
[[500. 500. 500. ... 500. 500. 500.]
[500. 500. 500. ... 500. 500. 500.]
[500. 500. 500. ... 500. 500. 500.]
...
[500. 500. 500. ... 500. 500. 500.]
[500. 500. 500. ... 500. 500. 500.]
[500. 500. 500. ... 500. 500. 500.]]
[[500. 500. 500. ... 500. 500. 500.]
[500. 500. 500. ... 500. 500. 500.]
[500. 500. 500. ... 500. 500. 500.]
...
[500. 500. 500. ... 500. 500. 500.]
[500. 500. 500. ... 500. 500. 500.]
[500. 500. 500. ... 500. 500. 500.]]]
3.4. Organizing the inputs
They are two levels of possible organization: - species - organs
Each triangle are bound to a specy ID and a organ ID. Each specy is represented as a input scene. The organs ID are set inside each scene depending on its format.
An example with several scenes with the same organs ID and CARIBU.
[22]:
scene1 = {
111: [random_triangle_generator(spheresize=spheresize) for i in range(20)],
222: [random_triangle_generator(spheresize=spheresize) for i in range(30)],
333: [random_triangle_generator(spheresize=spheresize) for i in range(10)],
}
scene2 = {
111: [random_triangle_generator(spheresize=spheresize) for i in range(20)],
222: [random_triangle_generator(spheresize=spheresize) for i in range(30)],
333: [random_triangle_generator(spheresize=spheresize) for i in range(10)],
}
scene3 = {
111: [random_triangle_generator(spheresize=spheresize) for i in range(20)],
222: [random_triangle_generator(spheresize=spheresize) for i in range(30)],
333: [random_triangle_generator(spheresize=spheresize) for i in range(10)],
}
We have 3 species
[23]:
scenes = [scene1, scene2, scene3]
geometry = { "scenes": scenes }
[24]:
lighting = LightVegeManager(lightmodel="caribu")
lighting.build(geometry=geometry)
# compute the lighting
energy = 500.
hour = 15
day = 264
lighting.run(energy=energy, hour=hour, day=day)
print(lighting.elements_outputs)
Day Hour Organ VegetationType Area par Eabs par Ei
0 264 15 111 0 865.848719 367.620782 432.495038
1 264 15 222 0 904.093391 343.903742 404.592638
2 264 15 333 0 500.476649 374.891932 441.049332
3 264 15 111 1 719.501340 330.624848 388.970410
4 264 15 222 1 1023.379192 351.641676 413.696090
5 264 15 333 1 129.105369 391.022326 460.026266
6 264 15 111 2 1047.414777 335.930702 395.212591
7 264 15 222 2 1174.044647 349.124635 410.734865
8 264 15 333 2 521.903258 361.052748 424.767939
[25]:
SceneWidget(lighting.to_plantGL(lighting=True),
position=(-50.0, -50.0, 0.0),
size_display=(600, 400),
plane=True,
size_world = 100,
axes_helper=True)
[25]:
The two level organization are also kept with RATP
[27]:
lighting = LightVegeManager(lightmodel="ratp")
lighting.build(geometry=geometry)
energy = 500.
hour = 15
day = 264
lighting.run(energy=energy, hour=hour, day=day)
print(lighting.elements_outputs)
Day Hour Organ VegetationType Area PARa Intercepted \
0 264.0 15.0 111 1 865.848719 444.431609 438.050846
1 264.0 15.0 222 1 904.093391 439.138654 508.370824
2 264.0 15.0 333 1 500.476649 438.358519 466.758357
3 264.0 15.0 111 2 719.501340 441.984838 374.664274
4 264.0 15.0 222 2 1023.379192 436.324817 446.932608
5 264.0 15.0 333 2 129.105369 442.768841 373.148804
6 264.0 15.0 111 3 1047.414777 437.256257 728.403508
7 264.0 15.0 222 3 1174.044647 443.465415 536.007093
8 264.0 15.0 333 3 521.903258 432.082470 816.087594
Transmitted SunlitPAR SunlitArea ShadedPAR ShadedArea
0 438.050846 450.722334 463.402916 356.222905 49.407779
1 508.370824 446.126727 538.617195 351.627301 58.372064
2 466.758357 446.387940 492.094716 351.888516 56.801907
3 374.664274 449.154416 395.429864 352.554837 42.809579
4 446.932608 444.042247 473.516975 347.442668 51.797538
5 373.148804 449.336097 395.819748 352.736518 45.454794
6 728.403508 444.694193 770.345275 349.806482 81.342446
7 536.007093 450.321284 565.173551 355.433568 58.993793
8 816.087594 440.468993 864.084337 345.581276 97.832614
c:\users\mwoussen\cdd\codes\dev\lightvegemanager\src\lightvegemanager\outputs.py:255: UserWarning: You are merging on int and float columns where the float values are not equal to their int representation.
trianglesoutputs = pandas.merge(dftriangles, voxels_outputs)
3.5. Stems
If there are stems elements in the inputs, you can precise their ID and the tool will manage them, depending on the lightmodel: - with CARIBU, the optical parameters associated to the organ won’t have a transmission value (rays won’t cross the triangle) - with RATP, stems are separated in a new specy with its own leaf angle distribution and their leaf area is divided by 2
We reuse the wheat geometry given by adelwheat
[9]:
geometry = {
"scenes": [g]
}
stems are stored in list where each element is a 2-tuple (organ ID, specy ID)
[10]:
stems = [(19, 0), (34, 0)]
geometry.update({"stems id": stems})
[11]:
lighting = LightVegeManager(lightmodel="caribu")
lighting.build(geometry=geometry)
SceneWidget(lighting.to_plantGL(),
position=(0.0, 0.0, 0.0),
size_display=(600, 400),
plane=True,
size_world = 0.1,
axes_helper=True)
[11]:
[32]:
lighting.run(energy=energy, hour=hour, day=day)
print(lighting.elements_outputs)
SceneWidget(lighting.to_plantGL(lighting=True),
position=(0.0, 0.0, 0.0),
size_display=(600, 400),
plane=True,
size_world = 0.1,
axes_helper=True)
Day Hour Organ VegetationType Area par Eabs par Ei
0 264 15 19 0 0.000228 194.070089 215.633432
1 264 15 34 0 0.000013 93.806573 104.229526
2 264 15 813 0 0.000194 458.967637 539.961926
3 264 15 814 0 0.000240 392.729426 462.034618
4 264 15 51 0 0.000284 350.644177 412.522561
[32]:
3.6. Geometric transformations
You can apply geometric transformations on some of the inputs scenes. We have currently 3 available transformations - translation by a vector - rescale by a factor or following scenes metric unit - rotation on the xy plane
Transformations are stored in a dict, which is stored at key "transformations" in the geometry entry. Structure of transformations :
transformations = {
"scenes unit": { specy ID: "metric unit", ...},
"rescale": { specy ID: float, ...},
"translate": { specy ID: 3-tuple (x,y,z), ...},
"xyz orientation": { specy ID: "x+ = NEWS", ...},
}
Main scenes
[13]:
spheresize = (2., 1.)
scene1 = {
0: [random_triangle_generator(spheresize=spheresize, worldsize=(0,10)) for i in range(20)]
}
scene2 = {
0: [random_triangle_generator(spheresize=spheresize, worldsize=(10,20)) for i in range(20)]
}
geometry = {"scenes": [scene1, scene2] }
[14]:
lighting = LightVegeManager(lightmodel="caribu")
lighting.build(geometry=geometry)
SceneWidget(lighting.to_plantGL(),
position=(0.0, 0.0, 0.0),
size_display=(600, 400),
plane=True,
size_world = 50.,
axes_helper=True)
[14]:
3.6.1. Translate
The translation vector is a 3-tuple (x,y,z). Transformations is a dict in the geometry dict.
[15]:
tvec = (10., -10., 10.)
transformations = {
"translate": {
0: tvec
}
}
geometry = {"scenes": [scene1, scene2] , "transformations": transformations}
[16]:
lighting = LightVegeManager(lightmodel="caribu")
lighting.build(geometry=geometry)
SceneWidget(lighting.to_plantGL(),
position=(0.0, 0.0, 0.0),
size_display=(600, 400),
plane=True,
size_world = 50.,
axes_helper=True)
[16]:
3.6.2. Rescale following metric unit
You can precise the metric unit of each scene from this list: "mm", "cm", "dm", "m", "dam", "hm", "km". By default the merged scene is in m but you can change its unit when you create an instance.
[17]:
transformations = {
"scenes unit": {
0: "dm"
}
}
geometry = {"scenes": [scene1, scene2] , "transformations": transformations}
[18]:
lighting = LightVegeManager(lightmodel="caribu", main_unit="m")
lighting.build(geometry=geometry)
SceneWidget(lighting.to_plantGL(),
position=(0.0, 0.0, 0.0),
size_display=(600, 400),
plane=True,
size_world = 50.,
axes_helper=True)
[18]:
3.6.3. Rescale by a scalar factor
[19]:
transformations = {
"rescale": {
0: 2.,
}
}
geometry = {"scenes": [scene1, scene2] , "transformations": transformations}
[20]:
lighting = LightVegeManager(lightmodel="caribu")
lighting.build(geometry=geometry)
SceneWidget(lighting.to_plantGL(),
position=(0.0, 0.0, 0.0),
size_display=(600, 400),
plane=True,
size_world = 50.,
axes_helper=True)
[20]:
3.6.4. Rotate
Finally, you can also rotate the scene around the z axis, in order to match the x+ convention for each input scene. You have the choice between: - "x+ = N" - "x+ = S" - "x+ = E" - "x+ = W"
The merged scene convention is x+ = N, which the convention in RATP and CARIBU.
[21]:
transformations = {
"xyz orientation": {
0: "x+ = S",
1: "x+ = E",
}
}
geometry = {"scenes": [scene1, scene2] , "transformations": transformations}
[22]:
lighting = LightVegeManager(lightmodel="caribu")
lighting.build(geometry=geometry)
SceneWidget(lighting.to_plantGL(),
position=(0.0, 0.0, 0.0),
size_display=(600, 400),
plane=True,
size_world = 50.,
axes_helper=True)
[22]:
